> 100 dale MDP1603 822G (8) 8.2K 0.25W resistors/chip dip

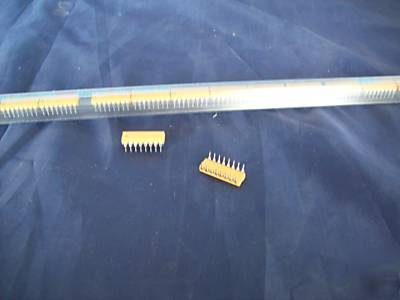

100 dale MDP1603 822G (8) 8.2K 0.25W resistors/chip dip
8 isolated 8.2K 0.25W resistors per chip
Thick Film Resistor Networks, Dual-In-Line,
Molded DIP, 01, 03, 05 Schematics
0.160" [4.06 mm] maximum seated height and
rugged, molded case construction
Thick film resistive elements
Low temperature coefficient (- 55 C to + 125 C)
Reduces total assembly costs
Compatible with automatic inserting equipment
Wide resistance range (10 to 2.2 M )
Uniform performance characteristics
Lead (Pb)-free version is RoHS compliant
The MDPXX03 provides a choice of 7 and 8 nominally equal resistors,
each resistor isolated from all others and wired directly across.
Commonly used in the following applications:
"Wired OR" Pull-up Long-line Impedance Balancing
Power Driven Pull-up LED Current Limiting
Powergate Pull-up ECL Output Pull-down
Line Termination TTL Input Pull-down
1.5 rated power, applied 1.5 hours ON and 0.5 hour OFF for 100 hours
4 hours at + 25 C ambient temperature
Thermal Shock 5 cycles between - 65 C and + 125 C 0.50 % R
Short Time Overload 2.5 x rated working voltage 5 seconds 0.25 % R
Low Temperature Operation 45 minutes at full rated working voltage at - 65 C 0.25 % R
Moisture Resistance 240 hours with humidity ranging from 80 % RH to 98 % RH 0.50 % R
Leads immersed in + 350 C solder to within 1/16" of device body for
Shock Total of 18 shocks at 100 G's 0.25 % R
Vibration 12 hours at maximum of 20 G's between 10 and 2000 Hz 0.25 % R
1000 hours at + 70 C, rated power applied 1.5 hours ON, 0.5 hour OFF
for full 1000 hour period. Derated according to the curve.
Terminal Strength 4.5 pound pull for 30 seconds 0.25 % R
Insulation Resistance 10 000 Megohm (minimum) -
Dielectric Withstanding Voltage No evidence of arcing or damage (200 VRMS for 1 minute) -
Derating Ambient Temperature C
