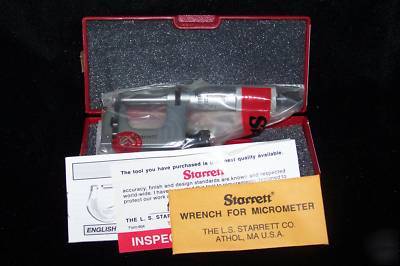

New starrett micrometer 220XRL-1 1" .001" grad.
Starrett Mul-T-Anvil Micrometer
Balanced frame and thimble design
Ring-type knurled lock nut for quick and
A choice of smooth friction thimble for
uniform pressure or the combination
ratchet and speeder for uniform
pressure and quicker adjustment
Interchangeable anvils are rigidly held in
the vise type frame and quickly
interchanged by a single lock screw
Two hardened anvils furnished round
anvil approximately .120 diameter
(3mm) and flat anvil approximately
.125 (3mm) and .060 (1.5mm) thick
V Anvil for measuring thickness of
screw heads and shoulder lengths
Accommodates special anvils up to
Can be used as a height gage by
Starrett satin chrome finish no glare
Advanced sleeve design with staggered
lines and distinct figures for precise and
Quick-reading figures every
thousandth numbered on inch tools
Accuracy and Long-Life Features
Rigid one-piece frame of drop forged
Extremely hard and stable one-piece
spindle (the heart of our accuracy)
Micro-lapped measuring faces
