Multi motion actuator, 540 degrees, 1" rotating stroke

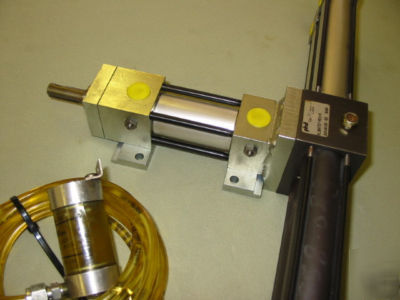

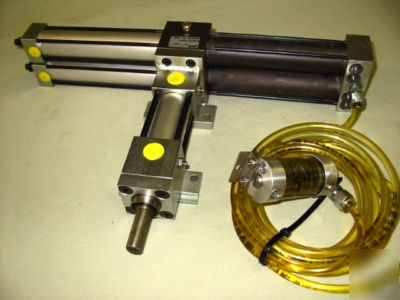

MULTI MOTION ACTUATOR BY PHD INC. THIS ACTUATOR CAN BE USED 2 DIFFERENT WAYS, IT CAN BE USED AS A CONVENTIONAL ROTARY ACTUATOR, OR IT CAN BE USED TO EXTEND AND ROTATE THE ROD ON THE CYLINDER THAT IS ATTACHED TO ACHIEVE A SPIRAL MOTION. THE RATE OF ROTATION AND EXTENSION CAN BE CONTROLLED SEPERATLY.
*NOT IF YOU REMOVE THE CYLINDER YOU COULD MAKE ANY KIND OF ADAPTER YOU WANTED. BUT IF YOU JUST WANT TO ATTACH YOUR FIXTURE TO THE CYLINDER ROD IT WILL WORK LIKE A CONVENTIONAL ROTARY ACTUATOR.
540 DEGREES OF ROTATION, IT CAN BE ADJUSTED DOWN TO ABOUT 450 DEGREES AND ANYWERE INBETWEEN
MODEL #ML304757-REV-A 04540160-03
1/4-20 MOUNTING HOLES ON 2 SIDES, THE CYLINDER ALSO HAS FOOT MOUNTS ON IT
1/8NPT PORTS ON THE ACTUATOR CYLINDERS AND 1/4NPT PORTS ON THE EXTENSION CYLINDER
ADJUSTABLE CUSHION ON BOTH ENDS OF THE ROTARY AND THE CYLINDER
TOTAL LENGTH IS 16" [ROTARY WIDTH], THE WIDTH IS 10 1/4"
THE END OF THE CYLINDER ROD IS 1/2" DIA X 1 3/8" LONG WITH A KEYWAY, THE ROD IS 5/8" DIA. AND HAS A 1" ROTATING STROKE.
MORE INFO AVALIABLE HERE http:// /Products/Default.aspx?productseries=11
THIS ROTARY ACTUATOR HAS BEEN SITTING ON A SHELF, BUT IT HAS NEVER BEEN USED.
