Mastech auto-range ac 1000A clamp meter multimeter dmm

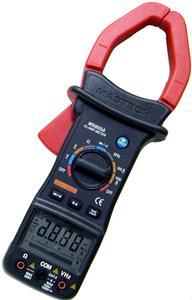

Mastech Auto/Manual Range AC Clamp on Meter, M9805A
The Mastech M9805A is an Auto-range AC clamp meter, it can be used to measure AC/DC voltage and AC current up to 1000A. Also you can use it to measure resistance up to 30 Mohms and frequency up to 30kHz. For your convenience, it comes with a nice ABS plastic carrying case.
* DISPLAY: 3200 COUNTS & 33-Segment bar graph
* DC VOLTAGE: 3/30/300 0.8% 1000V 1.0%
* AC VOLTAGE: 3/30/300 1.0% 1000V 1.2%
* AC CURRENT: 300A ( 2.0% if <100A, 3.0% if >100A)/ 1000A ( 2.0% if <100A, 3.0% if >100A)
* RESISTANCE: 300 /3k/30k/300k/3M 1.5% 30M 2.0%
* CONTINUITY TEST: less than 20 ohms
* MAX. DIAMETER FOR CONDUCTOR: 55 mm
* SIZE: 282 x 104 x 47 mm ( 1 inch = 25.4 mm)
* WEIGHT: APPROX. 500g (including battery)
* Auto/Manual Range Selectable
Mastech M9805A Clamp Meter: 1
ABS Plastic carrying case: 1
