Hydraulic gear pump- pompe hydraulique, hydraulik pumpe

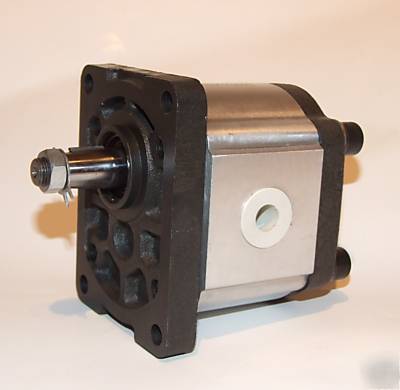

HYDRAULIC GEAR PUMP, GROUP 2, 25CC/REV-
Aluminium body with cast iron end covers.
25cc/rev displacement (delivering 37LPM @ 1500rpm)
4 bolt European mount, 1:8 taper shaft
Outlet port- 1/2" BSP threaded
Clockwise rotation (anti-clockwise available on request)
Pressure- 200 bar working, 250 bar max.
Speed- 2000rpm rated, 3500rpm max, 500rpm min

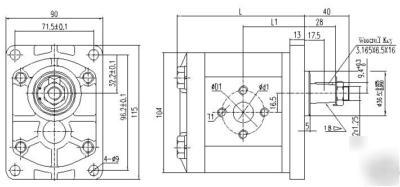

From drawing (enlarge above picture)- dimension L- 130mm, L1- 62mm
Large stock of new, quality pumps at lower than trade prices- visit my shop to see the range- try to find better!
NEW IN!!- 2 STAGE, HI LO FLOW HYDRAULIC PUMPS- IDEAL FOR LOGSPLITTERS, PRESSES ETC, CONTACT ME FOR DETAILS.
Postage to N.I and Highland Islands- 19.00
