Air vacuum powered clamps clamping system woodworkers

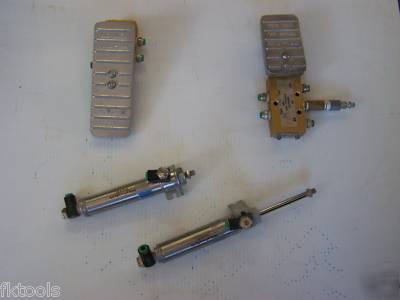

This is a set of six air actuating cylinders and foot valves used to clamp boxes in a wodworking manufacturer's shop.

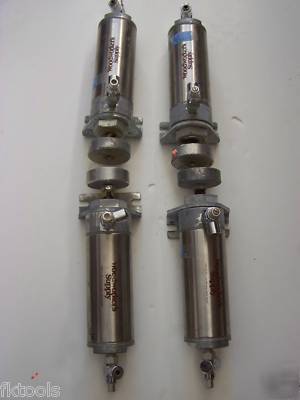

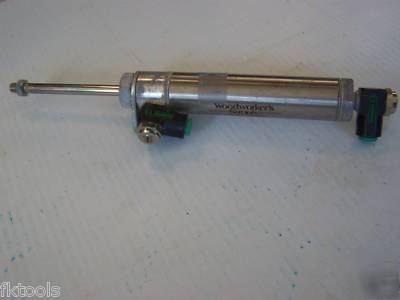

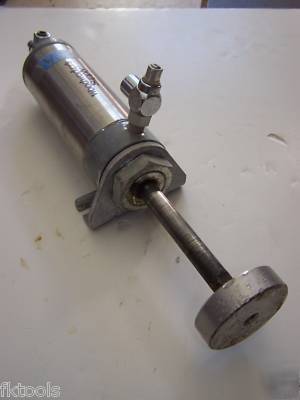

4 DOUBLE ACTING PNEUMATIC CYLINDERS 2-1/2"
2 DOUBLE PNEUMATIC CYLINDERS 1-1/16"
1 TOUGH 1/4" POLYETHYLENE TUBING
DOUBLE ACTING PNEUMATIC CYLINDERS PROVIDE GREATER CLAMPING FORCE
MORE RETURN STROKE POWER THAN SINGLE CYLINDERS
Compressed air applied to either of the two fittings on these double-acting cylinders drives the piston in the opposite direction and locks it in place at the end of its stroke:
* Clamping force is a multiple of air pressure supplied to the cylinder: for the 1-1/16" cylinder, the multiple is 0.9; for the 2", it's 3.1; and for the 2-1/2", it's 5.0.
* Cylinders are rated at 250 psi; flow controllers at 150 psi.
TOUGH 1/4" POLYETHYLENE TUBING STANDS UP TO AIR CLAMPING REQUIREMENTS
1/4" polyethylene tubing offers excellent resistance to alkalis, petroleum products, greases, abrasion, fatigue and corrosion:
* 28" Hg vacuum rating; 200 psi bursting pressure.
* Bright yellow for easy visibility.
FREE UP YOUR HANDS WHEN USING AIR TOOLS AND ACCESSORIES
Control the air supply to tools using valves that make it possible to better concentrate on the job:

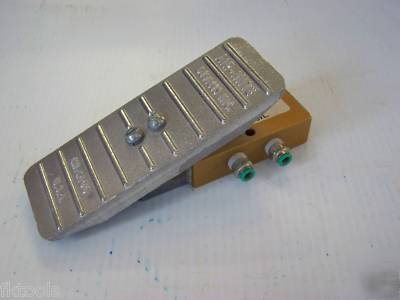

* 96-015 - Momentary action foot valve lets air flow when you depress it; air stops when foot is removed. Uses 1/4" NPT fittings (not included).
* 96-016 - Latching foot valve is a treadle type with detent that requires a heel and toe motion to clamp and unclamp. Uses 1/4" NPT fittings (not included).
