Romheld rotary air valve coupling double act 9296-602

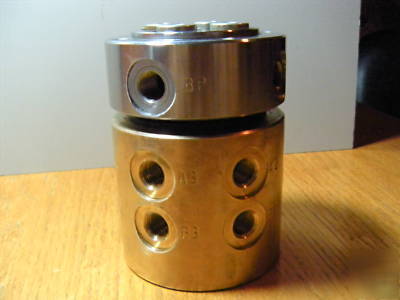

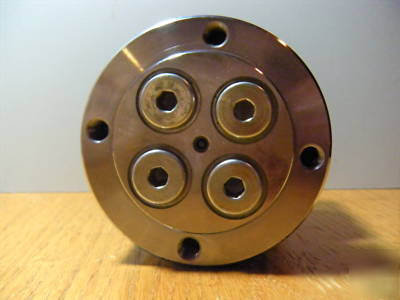

Romheld Rotary Air Valve Coupling - Double Acting
This unit was used in building a prototype machine only (was not used in manufacturing environment)
For rotary index tables with an independent load/unload station
Unload and reload while all other stations remain clamped
Unclamps automatically at load station, or via a clamping valve
OPERATION: One half of the Rotary Valve Coupling rotates with the index table, while the other half remains stationary. Each time the table and coupling index, a new station automatically becomes the load/unload station.
The coupling supplies loading station separately from all other stations. The loading station can be either unclamped and reclamped automatically as the coupling rotates, or controlled by a separate clamping valve.
