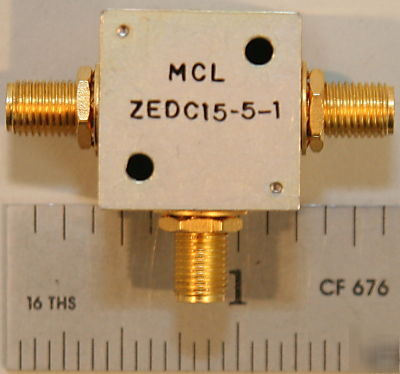

Mini-Circuits ZEDC-15-5-1 Coaxial Directional Coupler 50 1-1000 MHz
Applications: VHF/UHF, Cellular, Instrumentation, Communications Receivers & Transmitters
Cost New From Manufacturer: $64.95
Mini-Circuits ZEDC-15-5-1 Specifications:
* Coupling, Nominal: 15.5 0.5 dB
* Coupling, Flatness: 0.5 dB
* Mainline Loss, Low Range: 0.5 dB Typ., 1.4 dB Max.
* Mainline Loss, Mid Range: 0.8 dB Typ., 1.2 dB Max.
* Mainline Loss, Upper Range: 1.0 dB Typ., 1.4 dB Max.
* Directivity, Low Range: 35 dB Typ., 30 dB Min.
* Directivity, Mid Range: 30 dB Typ., 20 dB Min.
* Directivity, Upper Range: 25 dB Typ., 15 dB Min.
* Power Input, Low Range: 1.5 W Max.
* Power Input, Mid/Upper Range: 3.0 W Max.
