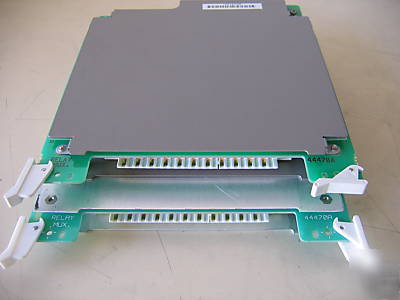

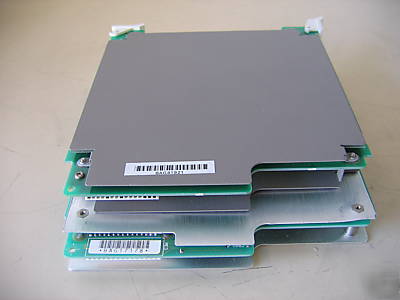

Agilent / hp 44470A multiplexer module, 10 ch.
AGILENT / HP 44470A MULTIPLEXER MODULE, 10 CH.
Description: The Agilent 44470A multiplexed module provides ten channels to switch both high and low input signals to a common bus. It can switch signals up to 250V, 2A, and 60W, or 125VA per channel. This module exhibits low thermal offset characteristics, making it ideal for precision low-level signal routing. It can be operated in either a break-before-make mode or multiple channels close mode. You can make four-wire ohm measurements by programming two Agilent 44470As to open/close in a card pair mode. A screw terminal block is provided for ease of wiring.
Specifications of the HP Agilent 44470A Multiplexer Module include:
Provisions to add simple attenuators or filter networks
