11" x 32" kbc universal cylindrical grinder #24720

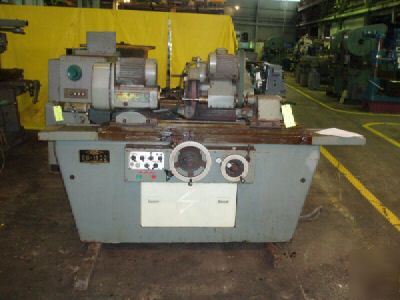

11" x 32" KBC UNIVERSAL CYLINDRICAL GRINDER
New 1980, Serial No 05041, Model CG-1132,
Internal Grinding Attachment (Swing-Down Type)
Swivelling Workhead (-30 to +90-Degrees)
Mechanical Longitudinal Table Feed
Taper Grinding Capabilities - Manual Pick Feeds
Swing Over Table, Maximum.............. 11"
Grinding Diameter, Maximum............. 11"
Distance Between Centers, Maximum...... 32"
Weight Between Centers, Maximum........ 150 LBS
Grinding Wheel Diameter, Standard...... 14"
Grinding Wheel Width................... 2.25"
Grinding Wheel Hole Diameter........... 5"
Workhead Spindle Taper................. #4 MT
Tailstock Spindle Taper................ #2 MT
(8) Workhead Spindle Speed, Range...... 35 to 310 RPM
Wheelhead Speeds, Range................ 1700 to 2100 RPM
Internal Grind Spindle Speed, Maximum.. 20000 RPM
Table Longitudinal Speed, Range........ 7.5 to 37.5 IPM
(3) Automatic Pick Feeds, Range........ .0002" to .0006"
Grinding Wheelhead Spindle Motor....... 3 HP
Internal Attachment Motor.............. 1/2 HP
Weight, Approximately.................. 4000 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $6,950.00
All machines/equipment subject to prior sale.
