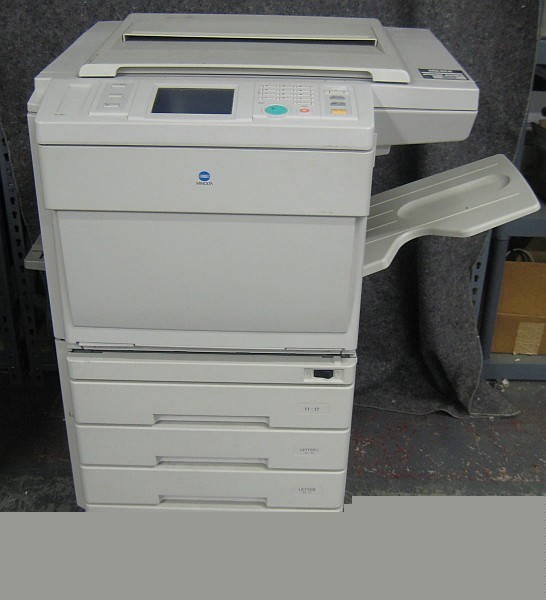

Konica minolta DI30 digital photocopier di-30 copy
Upon testing this unit, we did find it to have a couple functional issues. To begin, the copier powers on, warms up, and is ready for use very quickly. The trouble we ran into began once we attempted to make a copy. Without having paper to fit in the 11x17 drawer (which is the one on the top), we were unable to test it, so we had to start with tray 2. Once we loaded tray 2 with paper, we attempted to make a copy, but the machine errored, saying that there was no paper in tray 2. We then removed tray 2, and swapped it with tray 3. With tray 3 in the spot, it saw the paper with no problem, so the problem lies with the actual tray 2, rather than with the machine itself (we also tried tray 2 in tray 3's spot, but it still didn't register that there was paper). Once we got paper into a working tray, we were able to make a test copy, however as you can see in the photo below, the copy came out very dark. Also, it looks like the image has been printed on the page multiple times, to the problem more than likely lies in the imaging drum.
