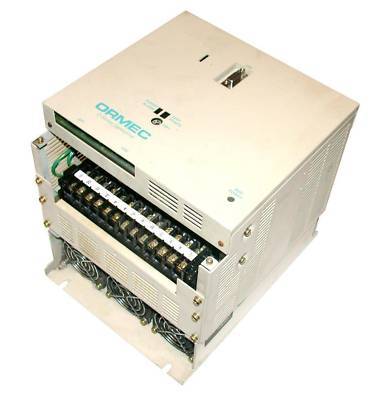

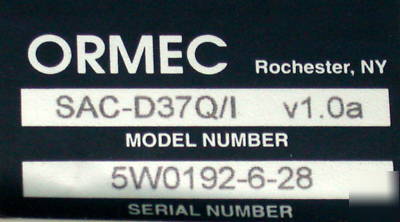

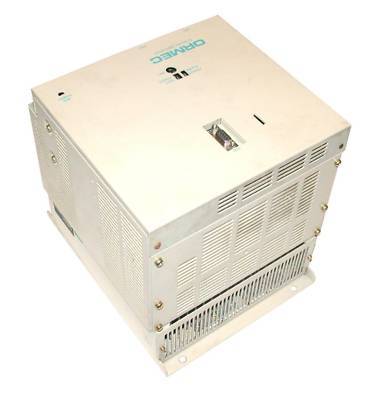

Very nice ormec d-series servodrive model #sac-D37Q
VERY NICE ORMEC D-SERIES SERVODRIVE MODEL #SAC-D37Q
This is a very nice drive in excellent condition and it is fully guaranteed.
Mounting Method: Vertically oriented chassis mounting, four 10-32 screws.
Incoming Line Voltage(Three Phase, 50/60 Hz): 230 VAC
Minimum Incoming Line Voltage: 170 VAC
Absolute Maximum Incoming Line Voltage: 253 VAC
Shunt Regulator Activation Bus Voltage: 380 VDC
High Bus Voltage Fault: 415 VDC
Low Bus Voltage Fault: 150 VDC
Encoder Power Voltage: +5 VDC, +/- 5%
Maximum Encoder Power Current: 300 mA, incremental encoder 400 mA, absolute encoder1
Input Voltage Requirements: +24 VDC @ 15 mA maximum
Input Current (at each input): 5 mA typical
Maximum Applied Voltage: +30 VDC
Maximum Current Sink Capability: -50 mA
