Norton BCSGUD5 u-dex-it diamond single point truning

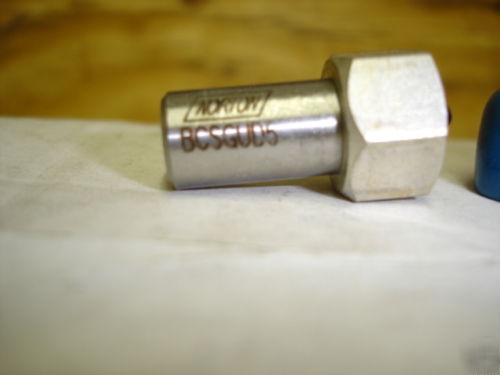

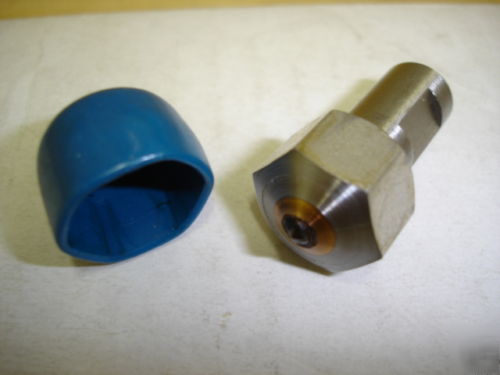

Norton BCSGUD5 U-DEX-IT Diamond Single Point Truning / Dressing Tool
Norton offers two sizes of Indexable Single Point Tools. The U-Dex-It (tools with "UD" in the product number) can be easily turned
using a 5/8" wrench without removing the tool from the holder. The Mini-Dex (tools with "MD" in the product number) are particularly
adaptable to Heald and Bryant internal grinders, Cincinnati Microcentric grinders, Van Norman bearing race grinders, and twist drill flute
grinders. When the tool needs to be turned, simply rotate the head with any standard 7/16" wrench
These U-Dex-It tools contain specially selected diamonds to withstand increased grinding pressures
The best selection when a resetting program is not feasible or low initial cost is the primary consideration
-Tool Carat Weight = 1/2 (.50)
-Tool Size = 7/16" X 1-1/4" WITH 5/8" HEAD
