Intermatic 24 hour electronic time switch - ET103C

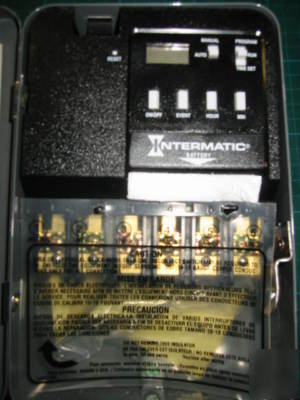

INTERMATIC 24 HOUR ELECTRONIC TIME SWITCH - ET103C NEW IN BOX.
CARDBOARD BOX IS NOT PERFECT BUT TIMER IS BRAND NEW. MSRP $130.00
* Manufacturer's Part #: ET103C
* 24 Hr. Electronic Time Switch
* Horsepower Rating: 1HP/2HP
This time switch provides to-the-minute programming for accurate load control and reduced energy costs. Up to 8
set points or events (4 ON/4 OFF) can be preset to automatically repeat on a daily basis. The program can

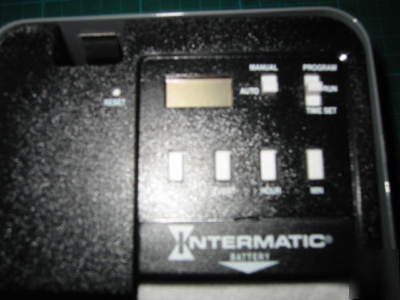

be overridden at any time by placing the selector switch in the Manual position. Two industrial grade AA
Alkaline batteries provide 3 years minimum program and timing protection.

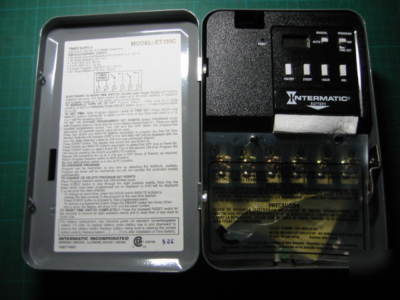

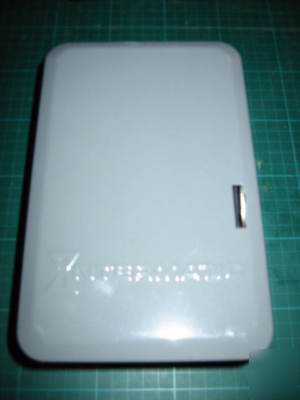

NEMA 1 Drawn steel 7-3/4" (19.7 cm) High, 5" (12.7 cm) Wide, 3" (7.6 cm) Deep in gray finish.
Note: The electronic mechanism snaps into the standard Intermatic time switch case, replacing mechanical mechanisms, if desired.
Combination 1/2"-3/4" nominal knockouts, one on back and each side of case and two on bottom.
See Time Switch Cases for optional enclosures.
Special Voltages and Cycles
30 Amp Inductive/Resistive, 24 / 120 / 240 / 277 VAC 60 Hz; 20 Amp Resistive, 28 VDC; 1 HP 120 VAC 60 Hz; 2 HP 240 VAC 60 Hz; 5 Amp Tungsten, 120 / 240 / VAC 60 Hz; 20 Amp ballast,120-277 VAC 60 Hz. ET100C same ratings for 120 Volt loads only.
Carry-over Field replaceable AA batteries maintain program and accurate time keeping for 3 years minimum. Up front replacement does not require removal of mechanism or field wiring.
