Tempo precision tone generator model 177
The Model 177 Precision Tone Generator is used for telecom industry
pair identification and fault locating: supplies precise 577.5Hz crystal-
controlled signal. Variable output allows signal strength adjustment to
suit field conditions and improve accuracy. Works with any common
amplifier and exploring coil as an aerial fault locator. For communications
over inactive pairs, Model 177 supplies talk battery to power two
telephone butt-in test sets. Three test leads are equipped with tradi-
tional bent nose piercing clips with "bed of nails" insulation piercing pins.

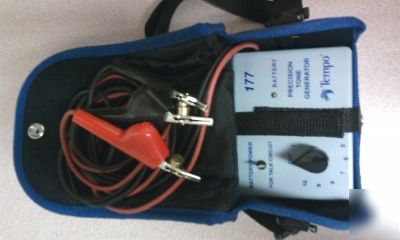

Tone generator and test leads fit neatly in a durable, protective woven
polyester carrying case with shoulder strap.
* Supplies a precise 577.5 Hz crystal-controlled signal frequency
* Variable output allows technicians to adjust signal strength to suit
field conditions and improve accuracy
* Designed to work with any common amplifier and exploring coil for
* For communications over inactive pairs, the unit supplies talk
battery to power two telephone test sets (buttsets)
* Each of the three test leads is equipped with traditional bent-nose
piercing clips with "bed-of-nails" insulation piercing pins

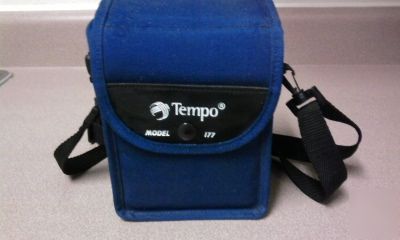

* The tone generator and test leads fit neatly in a durable, protective,
woven polyester carrying case with shoulder strap
* Battery operated (1 - 6V lantern included)
577.5Hz pulsed at 1Hz, crystal controlled
High-impact ABS plastic in woven polyester case
