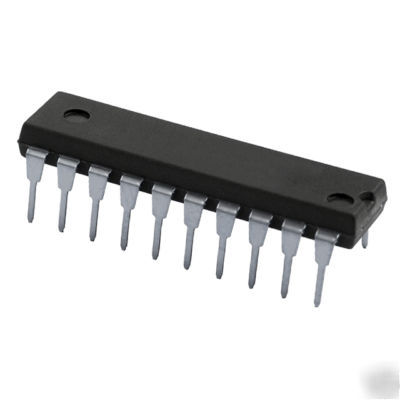

Ics chips: 5 pcs DM74LS244N 3-state buffer/line driver
Octal 3-STATE Buffer/Line Driver/Line Receiver
- 3-STATE outputs drive bus lines directly
- PNP inputs reduce DC loading on bus lines
- Hysteresis at data inputs improves noise margins
- Typical IOL (sink current) 24 mA
- Typical IOH (source current) -15 mA
- Typical propagation delay times
- Typical enable/disable time 18 ns
- Typical power dissipation(enabled)
