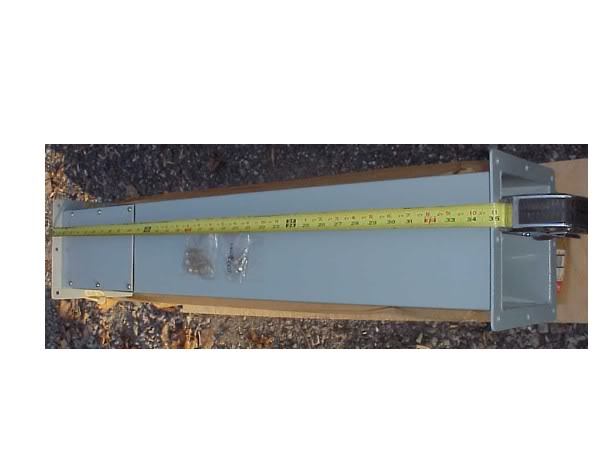

Hoffman A66CCOL 6" x 6" str enclosure pedestal columns
HOFFMAN A66CCOL 6" X 6" X 35" STRAIGHT PEDESTAL COLUMN ENCLOSUREINDUSTRIAL PROCESS SURPLUS
FEATURES: Column Type: Enclosure Pedestal, Straight
Mounting: Bolt-On Floor or Base
Material: Steel, 14Ga, 10Ga Flanges
Pedestals enable many types of enclosures and boxes to be floor mounted. Columns can be mounted on one of two size bases (not included). Wiring connections can be made through the base, through the vertical column, or directly to the enclosure. A cutout must be made in the enclosure if the wires are to come through the column. Columns have flanges at each end and a gasketed access plate. Screws, oil-resistant gaskets, and box connector fitting are furnished with each column for joining an enclosure to the top of the column. Columns are 14 gauge steel with 10 gauge flanges. 18.00 x 18.00 (457mm x 457mm) base is .19-inch (5mm) steel and 24.00 x 24.00 (610mm x 610mm) base is .25-inch (6mm) steel. Both bases have leveling screws and holes for bolting to the floor. Finish on bases and columns is ANSI 61 gray polyester powder coating over phosphatized surfaces. Bases and columns must be ordered separately. The user would normally remove the mounting brackets from the enclosure
