1 x 10R 25W aluminium clad wirewound power resistor
10R 25W Aluminium clad wirewound Power resistor
High power, aluminium clad resistors designed for applications requiring high power dissipation in limited space. These resistors are designed for direct heatsink mounting using thermal compound to achieve maximum performance.
* Wound to maximise high pulse capacity
* Temperature coefficient =1k 100ppm/ C, >1k 25ppm/ C
* 10W, 25W, 50W, 100W versions
* Manufactured in line with the requirements of IEC 115 and MIL 18546

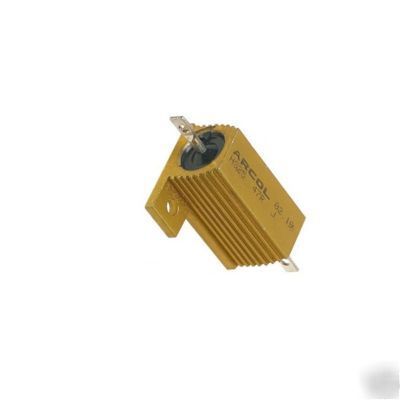

PICTURE REPRESENTS ONE OF THE WHOLE RANGE
see Resistors, Power Resistors for more of this type
