Super 8†rotary indexing fixtures
* Designed for milling, drilling, jig boring, and many other shop applications
* Hardened and ground 24 position index plate (15 increments).
* 360 satin chrome graduated ring with 10 second adjustable vernier plate insures accurate readings

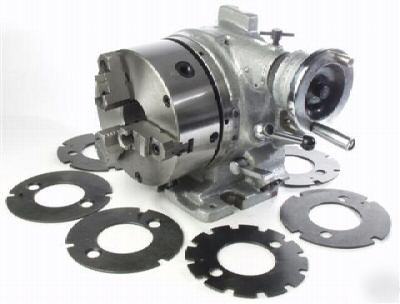

* Each unit is equipped with 6 masking plates for fast and simple indexing of 2, 3, 4, 6, 8 and 12 divisions
* Completely adjustable to within .0005 T.I.R.
* Complete with 8 3-jaw chuck with 2.48 diameter center hole
Super 8 Rotary Indexing Fixture
Maximum Individual Spacing Error
Squareness (table base to chuck)
Base Parallelism (face to face)
