Fluke 196B medical scopemeter ocilscp scope meter 196BM
* Fluke 196BM ScopeMeter Oscilloscope
* Fluke VPS200-R 10:1 Voltage Probe Set Red 200MHz
* Fluke VPS200-G 10:1 Voltage Probe Set Grey 200MHz
* Fluke AS200-G Accessory Set Grey
* Fluke AS200-R Accessory Set Red
* Fluke PM9080 Optical Interface Cable
* FlukeView Scopemeter Software SW90W

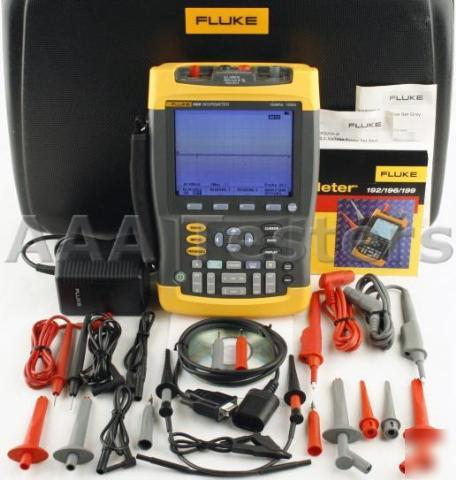

Fluke 196BM/003 ScopeMeter, 1GS/s Dual-Input 100MHz HandHeld Oscilloscope With Medical Option
Includes Hard Carrying Case & Full Accessories!
The Fluke 190 Series Medical ScopeMeters are high-performance oscilloscopes for the most demanding applications when servicing medical imaging equipment and video systems. Based upon the Fluke 190B / 190C Series ScopeMeters, the Fluke Medical ScopeMeter offers measurement capabilities optimized for servicing medical equipment in the following modalities: X-ray, MRI, Nuclear Medicine and Ultrasound.
* Dual input - 100 or 200 MHz bandwidth
* Choice of color or monochrome versions
* mAs current-over-time measurement
* Connect-and-View automatic triggering, a full range of manual trigger modes plus external triggering
* Video triggering with line selector for standard and high-resolution video systems
* Selectable persistence mode
* 27,500 points per input record length using ScopeRecord mode
* Automatic waveform measurements
* Four hours rechargeable NiMH battery pack
* 1,000 V CAT II and 600 V CAT III safety certified
* Up to 1,000 V independently floating isolated inputs
* Includes a 5,000 counts true-rms multimeter and a TrendPlot paperless recorder
* Real-time sample rate: 1 GS/s
* Inputs and digitizers: 2 plus external / DMM input
* Independently floating isolated inputs: Up to 1000 V between inputs, references and ground
* Timebase range: 5 ns - 2 min/div / 10 ns - 2 min/div (192B)
* Input sensitivity: 5 mV-100 V/div
* Trigger types: Connect-and-View , Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External
* Glitch capture: 50 ns (5 s/div - 1 min/div)
* Scope measurements: Cursor: 7 / Automatic:30
* Maximum record length: ScopeRecord mode:27,500 pts per input / Scope mode: 3,000 pts per input
* Display: 144 mm full monochrome LCD with fast update rate
* Waveform Compare: Waveform reference only
* Operating Temperature: 0 to 50 C
* Storage Temperature: -20 to +60 C
* Operating Altitude: 3,000 m
* Electrical Safety: 1,000V CAT II/600V CAT III (EN61010-1)
* RS-232 Interface: Optically isolated via optional PM9080/OC4USB for interfacing to Printer or PC
