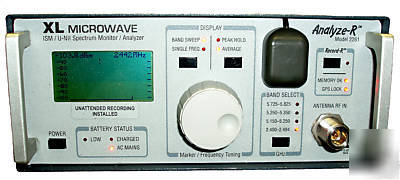

XL Microwave 2261 Analyze-R Microwave Antenna Path Alignment Test Set
To address the increasing use of the unlicensed ISM and U-NII Bands for WLAN, business-to-business and last-mile (short-haul) point-to-point and point-to-multipoint applications, XL Microwave has introduced the Model 2261, Analyze-R. This unique instrument allows you to quickly acquire and capture accurate test measurements for site analysis of interference as well as optimum antenna location. Additionally, the Analyze-R provides a versatile test solution for accurate antenna alignment.
The Analyze-R also contains XLs Record-R Data Logger, with embedded GPS receiver, for recording specific single frequency information or an entire 100 MHz ISM / U-NII band sweep. Recorded information includes frequency, peak or average power, longitude, latitude, and UTC date & time. Recording a Band Sweep will yield individual 1 MHz-wide peak or average power steps through the entire 100 MHz band along with location and date/time information. The instrument includes both RS-232 and USB interfaces. The Log View-R companion software (included) provides a virtual graphic display of the original recorded sweep including software marker for reading power/frequency values. The Log View-R is used for transferring information from the instrument to a PC for saving, viewing, analyzing, archiving, and printing of the recorded data.
* Four frequency bands with pushbutton frequency selection
* Display updated every 300 ms
* Automatic C/I calculation and Unattended Operation included
* 7 pounds (per unit)
* Data Record Time: approx. 20 milliseconds
* Data Format: CSV (comma-separated variable). This format is directly importable to an Excel spreadsheet.
* Max. No. of Records: 250 (stored in instrument's non-volatile memory)
* Downloading Records: Records are downloaded, thru RS-232-C or USB 'B' rear panel connectors
* Download Baud Rate: 9600 Baud
* Software (included): Log View-R, Data Log Utility software for Windows 95/98/2000/XP operating systems
* Band 1 (ISM): 2.400 - 2.484 GHz ( 85, 1-MHz-wide channels)
* Band 2 (U-NII-1): 5.150 - 5.250 GHz (101, 1-MHz-wide channels)
* Band 3 (U-NII-2): 5.250 - 5.350 GHz (101, 1-MHz-wide channels)
* Band 4 (ISM/U-NII-3): 5.725 - 5.875 GHz (3-101, 1-MHz-wide channels, L/M/H)
