Nsk nakanishi spindle -2551 0.98" nc / cnc lathe

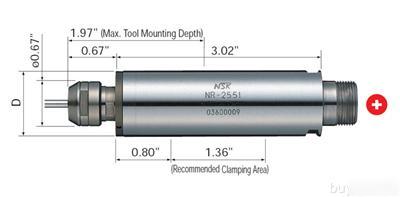

Nsk Nakanishi Spindle NR-2551 0.98" NC / CNC Lathe
SPINDLE NR-2551 (Ceramic Bearings)
-NR-2551 Spindle; Collet 1/8" (CHK-3.175) : Collet Nut (K-265) : Provided Wrench (12 x 14) : 2 pcs.,(20 x 24) : 1 pc.
Designed for increased durability by utilizing ceramic bearings, for obtaining strong rigidity in both radial direction and thrust directions by utilizing 2 super-precision ceramic bearings on the front side and 2 on the rear side. This spindle can be used for small-diameter milling, drilling, slitting, chamfering, grinding, etc.
The NR-2551 is assembled with ultra-precision ceramic bearings and is designed to withstand continuous operation at up to 50,000 min-1(rpm).
