Egd adjustable shock absorber (2)

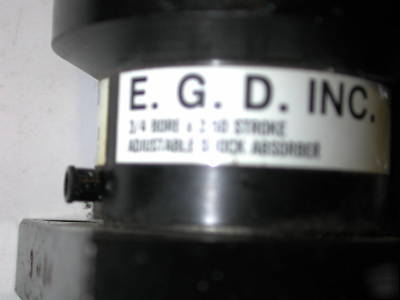

Series A 3/4" Bore 2.5" stroke

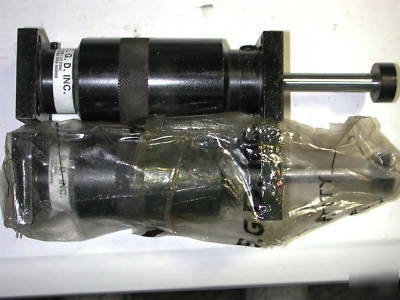

Qty. 2-One still in new plastic wrap. The second was removed from plastic for photo.
http://egdmfg.com/EGD1200v1a.pdf
Adjustable (Series A) Shock Absorbers
The EGD MFG INC Adjustable (Series A) LOAD-STOP shock absorbers come in four bore sizes; 3/4", 1 1/8", 1 1/2", and 2" bore. Easily adjustable and available in a variety of mounting styles, they are recommended when the load weight, velocity, or propelling force are too difficult to obtain and only an estimate can be made of the total energy. These shock absorbers are well suited for the high speed reciprocating motion applications such as in packaging machinery, binding equipment, machine tools, etc.
The 3/4" bore adjustable LOAD STOP shock absorbers provide uniform, gentle deceleration of any moving load from 25 to 25,000 pounds, or where velocity and weight combination equals 4000 inch-pounds. The 3/4" bore adjustable is available in 1", 2", 2 1/2", and 3" stroke lengths.
The 1 1/8" bore adjustable LOAD STOP shock abosrbers gently stop any moving load from 50 to 50,000 pounds or with velocity and weight combination up to 20,000 inch-pounds.
Stoke lengths up to 4" are available.
The 2" bore adjustable LOAD STOP shock absorber gently stop loads from 100 to 100,000 pounds or with velocity and weight combination up to 94,200 inch-pounds. Stroke lenghts up to 6" are available.
The 1 1/2" bore adjustable LOAD STOP shock absorber gently stop any moving load from 50 to 50,000 pounds or with velocity and weight combination up to 46,000 inch-pounds. Stroke lenghts up to 6.5" are available.
