Dayton 20" shutter mount exhaust fan

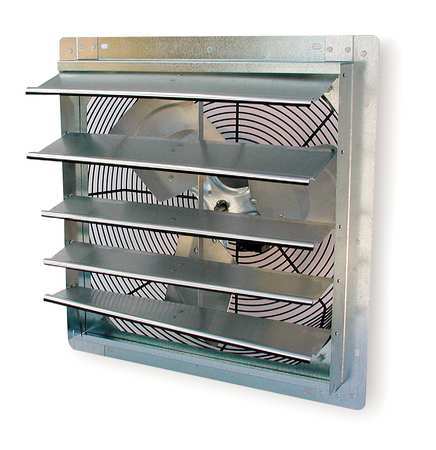

Dayton 20" Shutter Mount Exhaust Fan
Exhaust Fan, Direct Drive, Shutter Mounted, Single Speed, Propeller Dia 20 In, CFM @ 0.000-In SP 2955, @ 0.125-In SP 2450, @ 0.250-In SP 1960, Sones @ 0.000-In. SP @ 5 Ft. 14.4, Voltage 115, 60 Hz, Single Phase, Full Load Amps 4.5, HP 1/4, Max Ambient Temp 104 F, Motor Type Shaded Pole, Bearing Type Sleeve, Height 23 1/8 In, Width 23 1/8 In, Max Depth 17 5/16 In, Sq Opening Required 21 In, Propeller Material Stamped Aluminum, Guard Material Steel, Includes Automatic Shutter
ItemExhaust FanTypeDirect Drive, Shutter Mounted, Single SpeedPropeller Dia. (In.)20CFM @ 0.000-In. SP2955CFM @ 0.125-In. SP2450CFM @ 0.250-In. SP1960Sones @ 0.000-In. SP @ 5 Ft.14.4Motor RPM1725Voltage115Hz60Phase1Full Load Amps4.5HP1/4Max. Ambient Temp. (F)104Motor TypeShaded PoleMotor EnclosureTotally Enclosed Air-OverMotor InsulationClass ABearing TypeSleeveHeight (In.)23-1/8Width (In.)23-1/8Max. Depth (In.)17-5/16Sq. Opening Required (In.)21Frame MaterialCold Rolled SteelFrame FinishWhite PolyesterPropeller MaterialStamped AluminumGuard MaterialSteelWire Guard FinishGray PolyesterNumber of Blades3Agency ComplianceUL Listed for US and CanadaIncludesAutomatic Shutter
