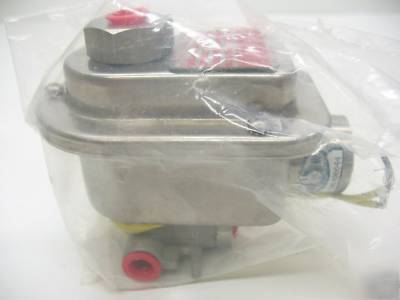

Asco WSHT8317A36 solenoid valve all ss, n.c., 3-way, ¼"
ITEM: ASCO Model WSHT8317A36 (WS = Watertight, HT = Class H High Temperature Coil) 3-Way Pilot Operated Quick Exhaust Solenoid Valve, Similar (though may not be fully equivalent) to NEW MODEL# 8317G36 with the ADDED ADVANTAGE of the High Temp coil AND ALL Stainless Steel Housing, STAINLESS STEEL BODY, 1/4" Female NPT Pipe Size Connections, 3/32" Orifice, Cv = 0.2, 120VAC @60Hz, H class High Temperature Coil, STAINLESS STEEL WATERTIGHT ENCLOSURE NEMA Types 3, 4, 4X & 6, w/ 1/2" open conduit port and 18" wire leads, Union Made Label.
3-Way, NORMALLY CLOSED (closed when de-energized) (SEE PORTING DIAGRAM in Installation Instructions website link below).
Pipe Size (inches, nominal): 1/4
Orifice Size (inches, nominal): 3/32 Pressure Port, 1/4" Exhaust Port
Cv Flow Factor: 0.2 Pressure Port, .73 Exhaust Port
CONDITION: Surplus NEW in sealed plastic bag.
ASCO 8317 valve catalog webpage (NOTE: see model number 8317G36)
ASCO 8317 valve Installation Instructions (NOTE: see drawing for PORTING DIAGRAM when in operation)
