> 10PCS soic to dip 8-pin convert pcb adapter smd OPA627
10PCS soic to dip 8-pin convert pcb adapter smd OPA627

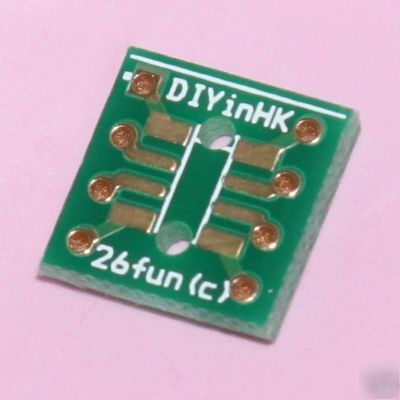

The best quality SOIC-8 to DIP-8 Adapter!
Revolution design with Self Cooling System*
Board Material: FR4 2mm thickness
Surface treatment: Gold Plated
** This GOLD PLATED version especially suitable for the DIYER Audio Equipments upgrade modifications. ***
1. This is a DIY kit, use bread board or IC socket to fix the parts for soldering easily.
2. The shorter and thicker end of the golden header pin is soldering to the PCB.
Important notes: Test each point to avoid short circuit before plug in the main circuit.
DIYINHK Direct Convection Cooling System:
1. There are two big hole near the centre of the adapter PCB.
2. When the circuit is running, the IC/opamp heat up the cool air in the hole.
3. Hotted air moving upward in the hole by the rule of nature.
4. The air movement is just like blowing the SMT IC with fan slowly!
All adapter available in the market has serious quality and design fault.
You can simply search the web to see how those so call professional design are terrible.
1. unnecessary via (inductance problem in the signal path)
2. long and parallel copper trace routing (interference and signal degrade problem)
3. narrow and thin copper trace (small current tranfer limit)
4. traces direct underneath each other on two side of the board (capacitance problem)
Replace all your current soic to dip adapter NOW and see the different!
(Mail Tracking is available from Hong Kong Post WebSite)
Good news for media and high-traffic personal website owner. Free sample at limited quantity for review.
