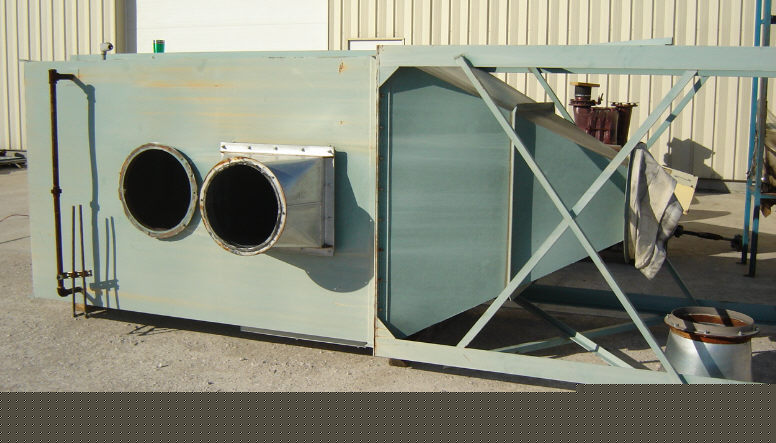

1,700 sq ft pulse jet dustex cartridge dust collector
1,700 SQ FT PULSE JET DUSTEX CARTRIDGE DUST COLLECTOR
MANUFACTURED BY DUSTEX, CHARLOTTE, NC. MODEL CJU-1500, S/N-A323002A. UNIT CONTAINS SIX 14"DIA X 36" LENGTH PPLEATED CARTRIDGES IN A COMPRESSED AIR PULSE JET DESIGN CHAMBER. COMPRESSED AIR HEADER IS LOCATED INTERNALLY IN THE TOP REMOVAL CLEAN AIR PLENUM. UNIT IS PAINTED CARBON STEEL CONSTRUCTION AND IS APPROX 1700 SQUARE FEET. OVERALL DIMENSIONS 58" X 58" X 183" HEIGHT. APPROX 48" VERTICAL CLEARANCE UNDER HOPPER OUTLET TO GROUND. MATERIAL OUTLET AT BOTTOM OF HOPPER IS APPROX 22" DIAMETER. DIRTY AIR INLET IS 16"DIAMETER. CLEAN AIR OUTLET IS 18" DIAMETER. UNIT IS IN EXCELLENT CONDITION. THE SIX CARTRIDGES ARE MOUNTED INSIDE COLLECTOR AND APPEAR TO BE IN GOOD CONDITION. THERE IS A SOPHISTICATED CONTROL PANEL THAT INCLUDES PUSH BUTTONS FOR FAN & TIMER ACTIVATION ALONG WITH PHOTOHELIC GUAGE. CONTROL WAS BUILT BY CARRINGTON ENGINEERING SALES, CHARLOTTE, NC. PROJECT NUMBER T2303. FUJI ORDER NUMBER 4500064788. CONTROL PANEL IS 22" WIDE X 12" DEEP X 30" TALL.
