Ni 16-channel sourcing digital output module fp-do-401

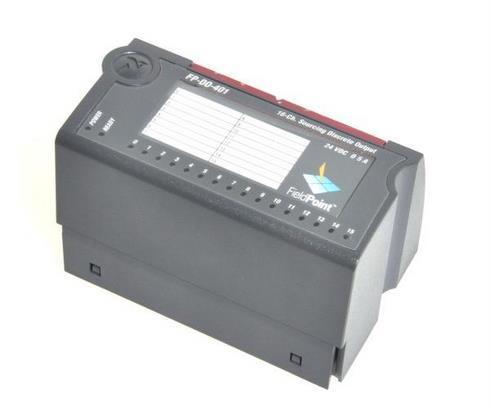

NI 16-Channel Sourcing Digital Output Module FP-DO-401
National Instruments NI 16-Channel Sourcing Digital Output Module for FieldpointModel # FP-DO-401New
* LED on/off state indicator, per channel
* HotPnP (plug and play) operation
* Up to 2 A per channel, 8 A squared per module
* -40 to 70 C operating range
The National Instruments FP-DO-401 module features 16 sourcing digital output channels. Each channel is compatible with voltages from 5 to 30 VDC and can source up to 2 A per channel with a maximum of 8 A squared per module. (The sum of the squares of the output currents from all 16 channels must be no greater than 8). Each channel has an LED to indicate the channel on/off state. The module features 2300 V transient isolation between the output channels and the backplane. To make installation and setup easier the FP-DO-401 features HotPnP (plug and play) operation and is automatically detected and identified by the configuration software.
http://sine.ni.com/nips/cds/view/p/lang/en/nid/12167
We cannot guarantee that any remaining manufacturers warranty or if software licenses are transferable. Items are sold by us with a (10) day DOA warranty (unless otherwised noted in the discripition), with NO additional warranty expressed or implied. Passwords may have to be reset unless otherwise stated. Software may have to be reloaded unless otherwise noted. Cables, Manuals & Software Are Not included unless otherwise stated. Check the pictures to make sure you understand what you are getting, if it is not in the picture, don't expect to get it.
