New pcb ultra minature switch X10 circuit board mount

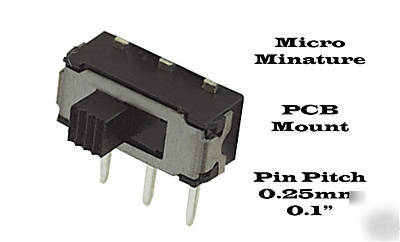

PCB Circuit Board Mounting Slide Switches
A miniature slide switch with SPDT contacts.
Body measures just 8.5 x 3.5 x 3.5mm
Ideally suited to a wide range of low voltage applications
Right angle actuator button making it ideal for edge of board applications
Pins are on a 2.54mm pitch making the switch suitable as an alternative to jumpers etc.
swiches have 3 legs, spaced at 2.54mm / 0.1" STD PCB Pitch
Great adition to the project builders tool box !
