> New omron proximity prox switch tl-T2F15 bnib

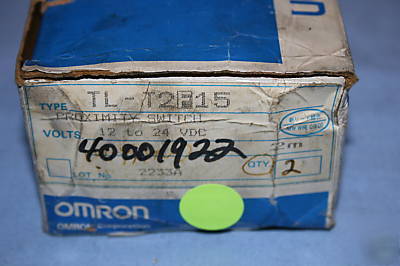

New omron proximity prox switch tl-T2F15 bnib
Ferrous metal (Sensitivity lowers with non-ferrous metals.)
12 to 24 VDC (ripple(p-p) :20% Max.)
Control output (Switching capacity)
Control output (Residual voltage)
(DC) 1 V Max. (under load current with cable length of 2m)
Power supply reverce polarity protection
Standard or Different frequency
(with no icing or condensation)
+-10% Max. of sensing distance in temperature range of -25 to +70CEL
(As the basis for sensing distance of 23CEL)
+-2.5% Max. of sensing distance in rated voltage range +-15%. (As the basis for sensing distance at standard power voltage)
50 M OHM Min. at 500VDC between charged parts and the case
1000 VAC 50/60 Hz for 1 minute between charged parts and the case
10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
500m/s2 for 10 times each in X, Y, and Z directions
Applicable standard (EC Directive (Low Voltage Directive))
Applicable standard (EC Directive (EMC Directive))
Emission Enclosure: CISPR11 Group 1 classA
Immunity RF-interference: IEC61000-4-3
Immunity Conducted Disturbance: IEC61000-4-6
Applicable standard (CCC mark)
Pre-wired models (Cable length: 2 m)
