New lot 10X 15A / 15 amp dc ammeter panel meter #149X10

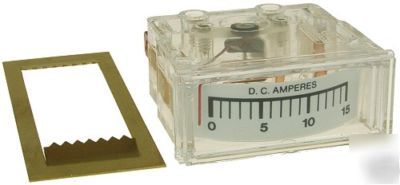

Lot of 10 New 15 Amp DC Panel Meter With Mounting Hardware
New 15 Amp DC rectangular shaped panel meter with built in shunt. 1/4" tab terminal connectors located on back side of meter. Brass plate push-on mounting hardware included. These panel meter are new old stock merchandise in prime condition. These meters work great for solar energy applications.
Installation Tips: To install this meter cut the positive side of the wire that you want to meter and install the two cut wire ends onto the terminal connectors. No additional parts or shunt are required to install this meter.
Voltage Range: Works great in the 0-48 Volts DC range however it also works with higher Dc Voltages if needed.
Dimensions: 1-3/4"(W) X 11/16"(H) X 2-1/8"(D)
Mounts Into: 1-3/4" Wide X 3/4" High Rectangular Opening
ElectricScooterParts Item # 149X10
