Eleven-in-one lcd monitor cctv camera ptz test tester
Eleven-in-One CCTV security tester
Combine the video test, Optical Power Meter, Digital Multi-meter, PTZ controller, video signal level test, NTSC/PAL color pattern generator, UTP cable test, PTZ protocol analysis, PTZ address scan, DC12 1A output, Audio test to one body.
The CCTV testerPRO STest-895 is developed for the On-Site installation and maintenance of video monitoring system. It can be used for displaying video, testing video level, controlling PTZ, scanning PTZ address, generating images, capturing data of RS485 and testing LAN cable etc. Its functions, easy operation, and portability makes it simple for the CCTV technician to install and maintain CCTV system, improving work efficiency and get the labor cost down.
STest-895 equipped with the Optical Power Meter. Use in testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
STest-895 is an ideal multifunction Instrument for CCTV security system, Fiber Optical communication, CATV and other Fiber Optic works.
1.CCTV system installation and maintenance
2.Dome camera and All in one camera testing
3.The CCTV transmitting channel testing

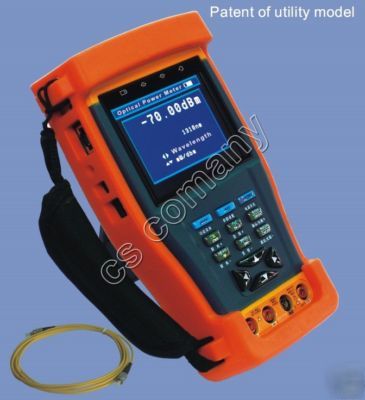

STest-895 CCTV Security Tester
3.5 inch TFT-LCD ,960 x 240 resolution
Adjustable brightness, contrast, color of LCD
1 channel BNC Input & 1 channel Output
Video signals measured in IRE or mV
RS232, RS422 simplex and RS485
Compatible with more than 20 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.customized
150,300,600,1200,2400,4800,9600,19200bps
Output 1 channel color bar video signal for testing monitor
Test UTP cable connection state and display in the screen. Read the number of the test box.
Capture and Analyze the PTZ data sent from controlling device
Search up the ID of PTZ camera
testing the laser power of Video Fiber Optic Transmission equipment, and testing the Fiber Optic Patch Cord , etc.
Voltage, current, resistance and capacitance measuring, continuity testing, diode testing.
1 pcs Lithium Ion Polymer Batteries, 3.7V DC3000mAh
4.5 hours recharging time, work for 12 hours
Sleeping mode, display battery power state
