Blink* ir sensors kit basic stamps pic avr mcu robot
EASY TO USE! Simplify your Programs!!
You are Viewing for our NEW model
BLINK* - Infra Red (IR) Sensor Pair
Drive mutiple pairs of IR Tranmitters/Recievers
Another Fun Educational New Product from FEN
Model: BLINK* Infrared Sensor Pair
IR Transmitter/Receiver component is troublesome to make and program if you need to use more than 2 pairs.
This IR Light Source is an engine for making IR reflective sensor easy to make and program.
Designed for object detection, it can drive up to 4 pairs IR transmitters with one PCB module.
Ideal for object detection project such as automation, robotics, dispenser etc.
Demo program of Mobile Bot Using Basic Stamp and BLINK* IR sensor
'****************** MAIN Program***************************
PULSOUT 6, 700 ' right wheel moves forward 700
PAUSE 20 ' pause to slow down and save battery
PULSOUT 7, 830 'left wheel moves forward 830
'************'Now check for obstacles at input pin0 and pin1 *****
IF IN1 = 0 AND IN0=0 THEN backup ' If both sensors detected, back up
IF IN0 = 0 THEN right_turn ' If Left sensor is detected, go right
IF IN1 = 0 THEN left_turn ' If Right sensor detected, go left
GOTO start ' Continue forward is nothing is detected
'*******************End of Main Program **********************
'**************************************************************************
'Subroutines for backup, turn left, turn right follow...........
This is a DIY Kit for an IR optical sensor. Its simplicity makes it ideal for your projects. It makes Infra Red Sensing particularly simple.
It can be used as standalone sensor such as a visitor chime, or connect to a microcontroller for easy interfacing.
In robotic, you may use it for Robot Eye or line tracer, unlike normal IR diode and detector, you need not generate any carrier frequency, just power it up and check for the IO status.
Infra-red is a non visible light with a wavelength of 950nm. It is widely use in remote control, it is insensitive to black object.
This module generates a modulated IR signal which transmit through the air, when an object is detected the IR signal will be reflected back to receiver and its output is set to "LOW " or 0 Volt.
2. Two pairs of IR Transmitters and Receivers
3. (optional) may work up to 4 pairs of sensors
6. VR adjustable sensitivity
7. Dimension (W X L X H) : (1.1in X 1.1in X 0.5in) or (28mmX28mmX10mm)
* Rated Voltage 5-12 vdc (built-in regulator)
* Distance: 5 cm - >1500 cm ( 2 in to >6 feet ')
Full Specifications and datasheet can be found at Far East Noble web site ( http:// )
*********************************************************************************************************************************
* We take great efforts in packing the item for a safe journey to its destination.
* Personal checks & US postal money order are not accepted.
* Refund (if accepted) within 7 days upon receipt of goods.
* Exchange only if the item is not working properly.

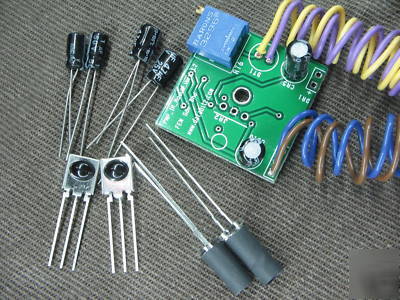

The file photo is of the item being sold. If you any inquiry, please feel free to contact us.
