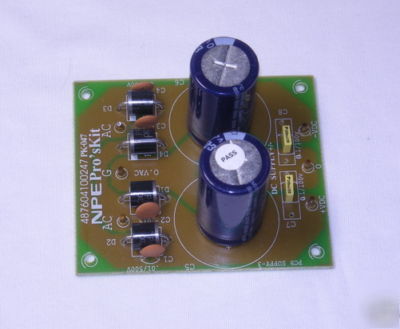

> Ac-dc dual power supply 46V regulator centre tap kit
Ac-dc dual power supply 46V regulator centre tap kit
This circuit is to convert AC voltage to Dual DC voltage ( + / - / GND )
To get dual power supply +/- , you have to use centre tap transformer to convert AC to DC. You can select tranformer which has output as above list to get needed voltage.
PCB size : 7.2cm x 8.5cm x 4.4cm ( Height at Big capacitor )
- Please feel free to contact me, if you have any questions.
Please click on the photo to see more electronic parts, projects kit
