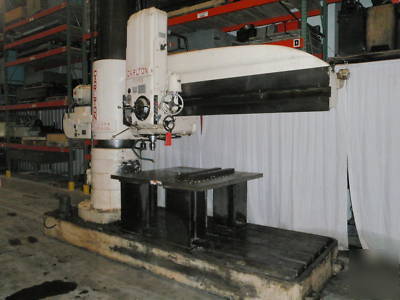

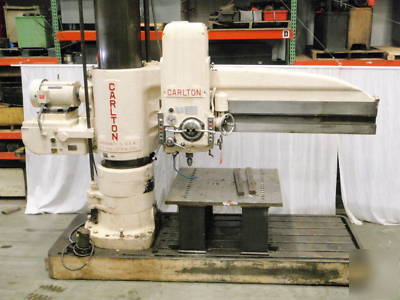

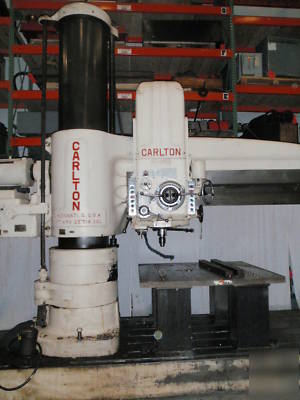

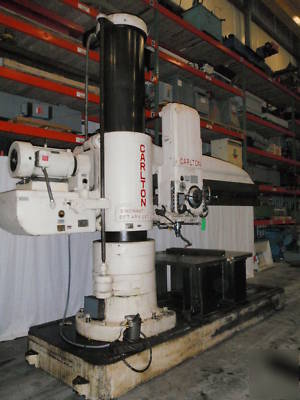

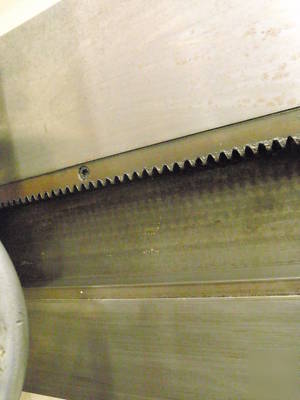

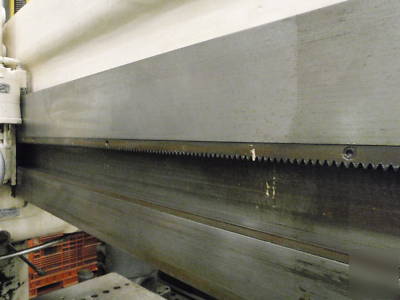

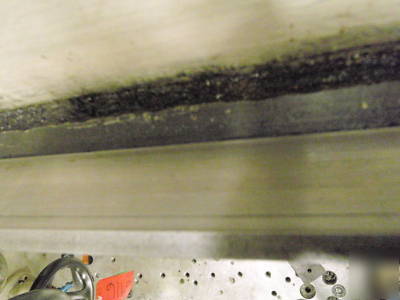

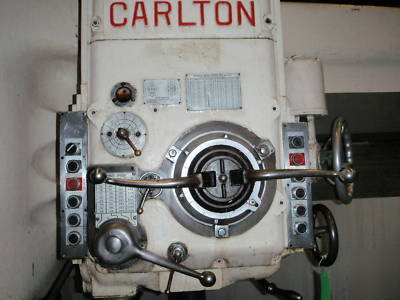

CARLTON 5A 8' X 22" RADIAL ARM DRILL
Face of column to center of spindle (max.) 8' 10"
Face of column to center of spindle (min.) 15"
Minimum spindle to base 18-1/2"
Working surface of base (W x L) 4' 9" x 8' x 6"
Vertical travel of spindle in head 24"
Bearing of head on arm 23-1/4"

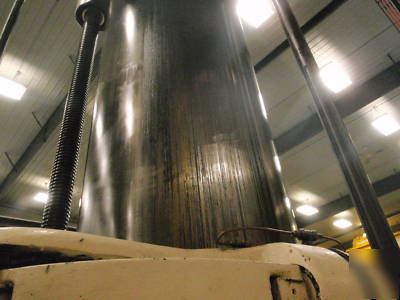

Bearing of arm on column 4' 5-1/2"
Height over head (maximum) 14' 4"
Traverse of arm on column 4' 5-1/2"
Drills to center of circle 16'

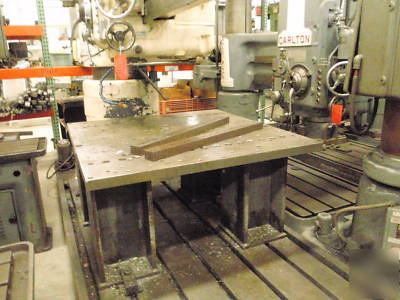

Working surface of side 17" x 40"
Spindle speeds 36 R.P.M. of motor (constant speed) 1800
Horsepower of driving motor 40
