New papst motoren 412JHH axial fan " "

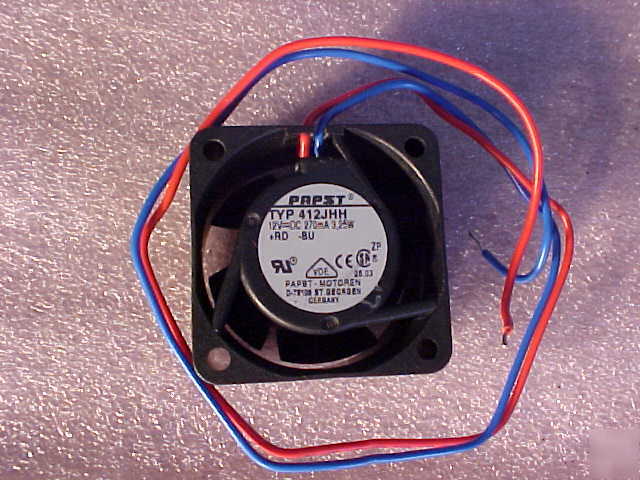

Papst Motoren 412JHH Axial Fan "NEW"
FAN, 40MM, 12VDC, VH; Current Type:DC; Supply Voltage:12V dc; Series:400J; Width, External:40mm; External Depth:25mm; Flow Rate:25m /h; Noise:46dB; Bearing Type:BB; Approval Bodies:CSA, UL, VDE; Connection Type:Lead; External Length / Height:40mm; Fixing Centres:32mm; Fixing Hole Diameter:3.5mm; Flow Rate, Imperial:14.7cu.ft/min; Flow Rate, Metric:25l/min; Lead Length:310mm; Max Flow Rate, Imperial:14.7cu.ft/min; Max Operating Temperature:50 C; Min Temperature Operating:-20 C; Power Consumption:3.2W; Voltage, Input Max:13.5V; Voltage, Input Min:8V; Current Consumption:270mA; Max Speed Range:13...
