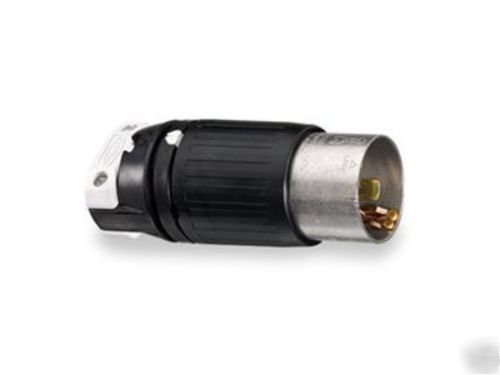

Hubbell CS8265C 250 volt twist-lock ac plug
This item is a new Hubbell CS8265C 250 Volt California Standard AC Plug Twist-lock type. Specifications:
Plug CS8265CVoltage 250 Volts Amperage 50 Amp Poles and Wires 2 Pole, 3 Wire Grounding Moisture Resistance IP20Cord Dia. .625 in. - 1.050 in. Blade Holder Material Glass Reinforced PET Terminal Retainer Material Glass Reinforce PET Housing Material Black Supertough Nylon Cord Clamp Material Glass Reinforce PET Blade Material BrassTerminal Screw Material Stainless Steel Ground Screw Material Stainless Steel Cord Clamp Screw Material 302/304 Stainless Steel Body Holding Screw Material 302/304 Stainless Steel Safety-Shroud Material Stainless Steel Seal Material NeopreneSeal Cup Material NylonLatches Material Supertough Nylon Box Terminal Material CopperFront & Rear Housing Material Supertough Nylon Dielectric Voltage Withstands 2,000V Minimum Temperature Rise Max 30 C after 50 Cycles at 150% rated current Operating Temperatures Max Continuous 75 C, Min -40 C (w/o Impact) Terminal Identification Terminals Identified in Accordance with UL498 (X, Y, Z, White, Green) Flammability UL 94 HB or Better
