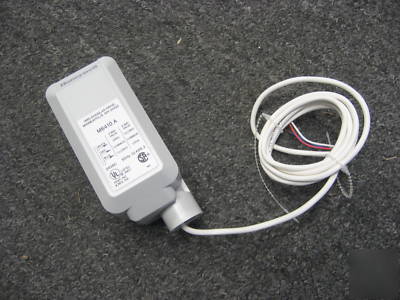

Honeywell M6410A1029 floating cartridge globe valve act
Floating Cartridge Globe Valve Actuator with 40.5 lb rated force
Cartridge Globe Valve Actuator are small electric actuators for individual room control that provide floating or modulating control of V5852, V5862 two-way or V5853, V5863 three-way valves.
Suitable for Excel/IRC system or other controllers providing specified signals.
Magnetic coupling for torque limitation independent of voltage supply and self-adjustment of the close-off port.
Small size allows installation in limited space of fan coil units, induction units, and small reheaters or recoolers.
Visual position indication (red pin).
Cartridge Globe Valve Actuator
Threads onto V58XX valve bonnet
2 3/8 in. high x 1 15/16 in. wide x 3 15/16 in. deep
61 mm high x 49 mm wide x 100 mm deep
Low Maintenance Plastic Housing
1/2 inch and 3/4 inch V58XX Globe Valves
