Eurotech elite quattroflex 420-sll 7-axis cnc mill/turn

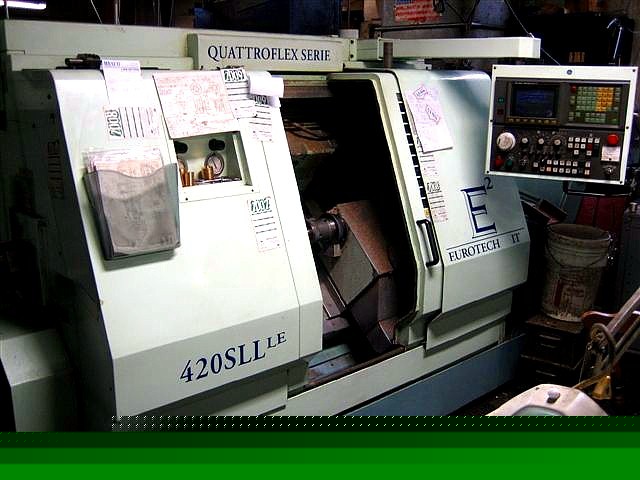

EUROTECH ELITE QUATTROFLEX 420-SLL 7-AXIS CNC MILL/TURN
EUROTECH ELITE QUATTROFLEX 420-SLL 7-AXIS CNC MILLING/TURNING CENTER
BAR CAPACITY MAIN ................ 1-5/8" 1"
MAX. MACHINING LENGTH ............ 6.29" 3.93"
MAX. SWING ....................... 7.87" 5.90"
DISTANCE BETWEEN NOSES ........... 22.04" 5.90"
VARIABLE SPINDLE SPEED ........... 100-5(***) 100-5000 RPM
SPINDLE NOSE ..................... ASA 5" ASA 4"
SPINDLE BORE ..................... 2.04" 1.65"
MOTOR POWER ...................... 11/15 KW 3.7/5.5KW
NO. OF TOOLS ..................... 12 EACH
NO. OF LIVE TOOL STATIONS ........ 6 EACH
VARIABLE SPEED RANGE ............. 100-3000 RPM
MOTOR POWER ...................... 1.5/3.7 KW
TOOL SHANK FOR OD TURNING ........ 3/4" X 3/4"
TOOL SHANK FOR ID TURNING ........ 1"
C-AXIS POSITIONING ............... 0.001 DEGREE
X-AXIS TRAVEL UPPER TURRET ....... 6.88"
X-AXIS TRAVEL LOWER TURRET ....... 5.19"
Z-AXIS TRAVEL UPPER TURRET ....... 12"
Z-AXIS TRAVEL LOWER TURRET ....... 6.10"
APPROXIMATE WEIGHT ............... 10,800 LBS.
APPROXIMATE MACHINE DIMENSIONS ... 14' x 7' X 6'
- EXSYS B42 COLLET CHUCKS ON MAIN AND SUBSPINDLE
- (2) 12 POSITION TURRETS, 6 LIVE STATIONS ON EACH
- FULL C-AXIS ON MAIN AND SUBSPINDLES
- (3) Z-AXIS (FACE) LIVE TOOLHOLDERS
- IEMCA TAL 65/38 MAGAZINE BARFEED s/n:97022434
CUTTING MOSTLY BRONZE AND BRASS, SOME STAINLESS
