Elcom at-51 10 db 50 ohms attenuator dc to 1500 mhz

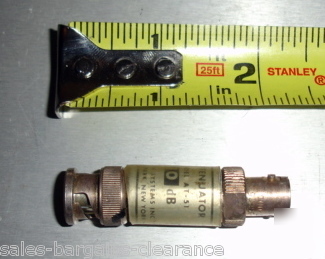

Elcom AT-51 10 dB 50 OHMS Attenuator DC to 1500 MHz
Good, working condition. SPECIFICATIONS: AT-51 ATTENUATOR
FREQUENCY RANGE .............. DC to 1500 MHz
IMPEDANCE .................... 50 OHMS
ATTENUATION .................. 1 to 10 dB IN 1 dB STEPS
ACCURACY ..................... DC to 1000 MHz 0.5 dB
VSWR ......................... 1.2:1 NOM., 1.35:1 at 1500 MHz
DISSIPATION AT 70 C ... 0.5 WATT CW, 1000 WATTS PEAK
OPERATING TEMP. RANGE ........ -25 to +85 C (See Note 1)
STORAGE TEMP. RANGE .......... -55 to +125 C
CONNECTORS ................... BNC/M - BNC/F, TNC/M - TNC/F,
