Dow-key 300C51200 transfer pulse latching switch 28V sc

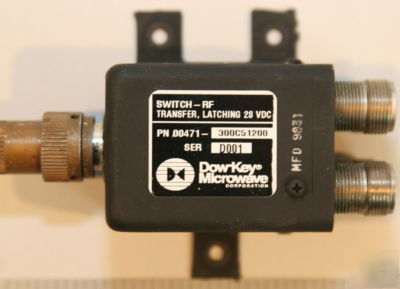

Dow-Key 300C51200 Transfer Latching Switch 28VDC DC-12.4GHz
Dow-Key 300C51200 Specifications:
* Actuator Coil Type: Pulse Latching, Self Cutoff
* Indicators: Mechanical SPDT
* VSWR, 8-12.4 GHz: 1.50 Max
* Isolation, DC-12.4 GHz: 60 dB Min
* Insertion Loss, 1-4 GHz: 0.25 dB Max
* Insertion Loss, 8-12.4 GHz: 0.50 dB Max
* Coil Current: 28 Vdc 650 mA
Dow-Key 300 Series Transfer Switch Data Sheet
Dow-Key 300 Series Power Chart
