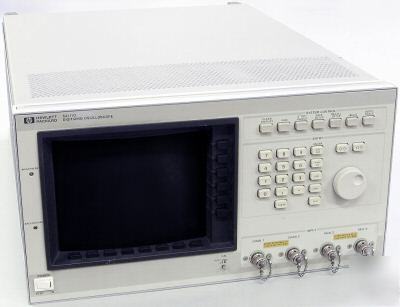

Agilent hp 54111D digitizing oscilloscope 500MHZ 1GSA/s
The 54111D Digitizing Oscilloscope is a 1 GS/s, two-channel digitizing oscilloscope with a memory depth of 8 k samples per channel. The 54111D retains all of the key features and user friendliness of the 54100/110 Oscilloscopes...such as automatic measurements, auto-scaling, cursors, and a functional color display. Plus, the 54111D adds features necessary for controlling and managing the added memory depth, such as scroll, zoom, and memory bar. Other features include 500MHz repetitive bandwidth (250MHz single-shot), up to 8-bits of vertical resolution, pre-trigger information, and complex triggering capabilities.
* Input Voltage Ranges: continuously variable; 8mV to 40V full scale
* 200mV ( 1mV/div to 4.9mV/div)
* 1V (5mV/div to 49mV/div)
* 10V (50mV/div to 0.49mV/div)
* 100V (0.5V/div to 5V/div)
* Input Coupling: ac/dc/dc-50 ohm/ground
* Input Impedance: 1 M ohm at 6.5 pF or 50 ohm (dc)
* Single-Shot Repetitive Channels 2 2 Bandwidth 250 MHz 500 MHz Transition time 1.4 ns 700 ps Vertical resolution 8 bits/25 MHz 7 bits/100 MHz 6 bits/250 MHz 6 bits, 8 bits with averaging
NOTES: Power-up Self Test Fails. Channel 1 and Trigger 4 have errors, see the pictures.
