40X-2000X trinocular biological microscope + 5M camera

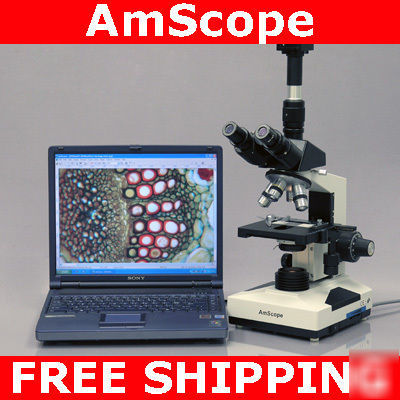

40X-2000X Trinocular Biological Microscope + 5M Camera
Brand Name: AmScope Model No: T490B-5M Retail Value: $2,500
* Simultaneous Viewing Through the Photo Port and Eyepieces
* Adjustable Parfocal Trinocular Port
* Industry Standard 23mm Photo Port and C-mount Port
* 5M High Quality Color USB2.0 Digital Camera
* Both Captures Microscope Images and Streams Live Video on Your PC Screen
* Displays 2592 X 1944 Pixel Real-time Clear Images with High Resolution
* User-friendly Software Compatible with Windows 2000/XP/Vista/7
* Life-time Free Software Upgrading
* 30 Inclined 360 Swiveling Compensation Free Trinocular Head
* Photo/Video Capability with Adjustable 23mm Photo Mount for Parfocal Image System
* Large 3-D Double Layer Mechanical Stage with Stain Resistant Finish
* Low-Position Coaxial Stage Movement Control Knobs
* Coaxial Coarse & Fine Focusing with CA Knob Tension Control
* Fully Coated Optical System with High Resolution
* Crystal Clear Sharp Images
* High Quality Professional Grade Microscope
* Perfect for Clinics, Vets, Doctors, and Students
* Eight Levels of Magnification: 40X-80X-100X-200X-400X-800X-1000X-2000X
* Upward Stage Stopper to Protect Slides and Objectives
* Abbe Condenser with Iris Diaphragm & Filters
* Rack and Pinion Adjustment for Condenser
* Built-in Halogen Illumination System with Variable Intensity
* Dual Focusing Control Knobs
* Four DIN Achromatic Objectives
* Adjustable Diopter on Ocular
* Solid Metal Frame Construction with Stain Resistant Enamel Finish
* Manufactured under ISO 9001 Quality Control Standards
* Satisfaction Guaranteed or Money Back!
* Mechanical Tube Length: 6-5/16" (160mm)
* Head: 360 swiveling compensation free trinocular head inclined at 30
* Eyepieces: WF10X and WF20X
* Achromatic Objectives: 4X, 10X, 40X (spring), 100X (spring, oil)
* Stage Dimensions: 5-1/2"x 5-1/2" (140x140mm)
* Stage Traveling Range: 2-15/16"x 1-3/4" (75x45mm)
* Focusing Range: 1-3/16" (30mm)
* Division of Fine Focusing: 0.0000787" (0.002mm)
* Abbe Condenser: NA=1.25 with rack and pinion focusing control
* Illumination: 6V/20W halogen bulb
* Power Supply: 110V (220V version available), CE certified
* Accessories: 6V/20W spare halogen bulb, immersion oil, blue, green & yellow filters
* Microscope Dimensions: 12" x 9" x 16"
* One Trinocular Compensation-Free Head with 23mm Adjustable Photo Port
* One Microscope Body with Frame, Base and Halogen Illumination System
* Four High Quality DIN Objectives, 4X, 10X, 40X and 100X
* Two Pairs of Widefield Eyepieces, WF10X and WF20X
* Spare Bulb, Dust Cover, Power Cord, Spare Fuse, Immersion Oil and User's Manual for the Microscope Included
* One 5M Digital Camera with One USB Cable, Two Adapters and One CD with Software and User's Instructions
* Our microscopes and accessories are manufactured under the strict guidelines established by ISO 9001: 2000 Standards with Certificate No: 3302/200213192. This item comes with 5-year warranty. We, instead of the third part, carry all of the full-coverage warranty services
The accessories below are compatible with the above microscope. They can boost your microscope with extra features! Click on the items you are interested in for detail or purchase.
