4" dia. 20HP sharp cts centerless grinder, hydrostatic

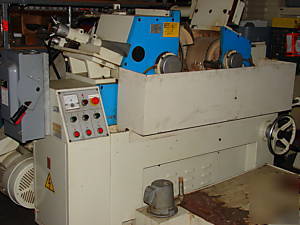

4" Dia. 20HP Sharp CTS CENTERLESS GRINDER, HYDROSTATIC
4" Dia. 20HP Motor Sharp CTS CENTERLESS GRINDER, HYDROSTATIC SPINDLE, HYD. DRESSERS
** THIS MACHINE IS MADE BY SUPERTEC MACHINERY IN TAIWAN,
AND IS THE SAME MACHINE AS THEIR MODEL #STC-20.
NEW PRICE TODAY IS OVER $46K !!!
MODEL: CTS S/N: C29904 NEW: 1999
GRINDING DIAMETER (STANDARD WORKREST)...... 0.04-2"
GRINDING DIAMETER (SPECIAL WORKREST)....... 2" TO 4"
DIAMETER X WIDTH X BORE.................... 20" X 8" X 12"
SPINDLE SPEED.............................. 1070 RPM
DRESSING INCREMENT, PER GRADUATION......... 0.0005"
DRESSING INCREMENT, PER REVOLUTION......... 0.0625"
DIAMETER X WIDTH X BORE.................... 12 X 8 X 5"
SPINDLE SPEEDS (10 STEPS).................. 13 - 308 RPM
FEED OF HANDWHEEL PER GRADUATION........... 0.002"
FEED OF HANDWHEEL, PER REVOLUTION.......... 0.2"
SWIVELLING ANGLE........................... +/- 5 DEG.
INCLINING ANGLE............................ +/- 5 DEG.
DRESSING INCREMENT PER GRADUATION ......... 0.00005"
DRESSING INCREMENT PER REVOLUTION.......... 0.0625
RAPID FEED OF SADDLE HANDWHEEL,
PER GRADUATION............................ 0.0002"
PER REVOLUTION............................ 0.25"
MICRO FEED OF SADDLE HANDWHEEL,
PER GRADUATION............................ 0.00005"
PER REVOLUTION............................ 0.00625"
GRINDING WHEEL MOTOR....................... 20 HP
HYDRAULIC MOTOR............................ 2 HP
FLOOR SPACE................................ 77" X 71" X 59"
WEIGHT..................................... 7000 LBS
HYDROSTATIC BEARINGS FOR BOTH GRINDING WHEEL & REGULATING
REGULATING WHEEL CAN BE SWIVELLED & INCLINED +/- 5 DEGREES
TURCITE ON REGULATING WHEEL WAYS
HYDRAULIC DRESSERS WITH +/- 3 DEGREES SWIVEL ADJUSTMENT
