Bimba d-11811-a-qh hole punch cylinder

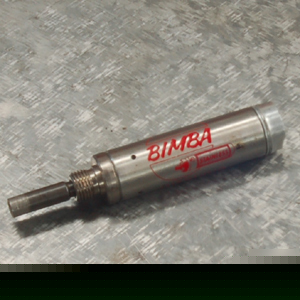

Bimba D-11811-A-QH Hole Punch Cylinder
* Designed to punch millions of holes in plastic or other thin sheet materials 2 to 3 mils thick, the long-life BIMBA Pneumatic Hole Puncher will give you more cycles per penny.
* The hardened steel cutter with ground razor sharp edges is an integral part of the cylinder. A small air jet ejects the slugs from the cutter preventing slug build up, and Elastomer Bumpers insure Cushion Quiet operation.
* Less than 1" in diameter, several cylinders can be closely mounted. Available in seven hole cutter sizes from 1?4" to 5?8".
* This stainless steel body, single acting spring return cylinder has a 3?4" bore and 1" stroke.
* A nickel plated steel rod guide is threaded for easy nose mounting, and a 1?8" NPT air inlet is conveniently located in the rear head. Prelubricated with HT-99, the cylinder can be operated with ordinary shop air at pressures up to 250 psi.
