Lot 50X MB1501PF fujitsu pll frequency synthesizer ic

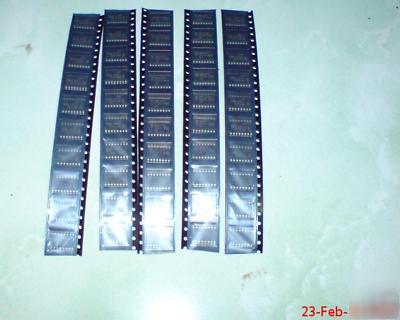

This is for 50pieces new Original PLL FREQUENCY SYNTHESIZER IC 16-LEAD PLASTIC FLAT PACKAGE from FUJITSU.
Can be used for Frequency 10MHZ up to 1.1GHZ. The device can be used for undirected replacement for LMX1501 and MC145170.
Description from the datasheet:
The Fujitsu MB1501/MB1501H/MB1501L, utilizing BI-CMOS technology, is a
single chip serial input PLL frequency synthesizer with pulse-swallow function.
The MB1501 series contain a 1.1GHz two modulus prescaler that can select either
64/65 or 128/129 divide ratio; control signal generator; 16-bit shift register; 15-bit
latch; programmable reference divider (binary 14-bit programmable reference
counter); 1-bit switch counter; phase comparator with phase inverse function;
charge pump; crystal oscillator; 19-bit shift register; 18-bit latch; programmable
divider (binary 7-bit swallow counter and binary 11-bit programmable counter).
* High operating frequency: fIN MAX=1.1GHz (PIN MIN=0.20VP-P)
* Low power supply voltage: 2.7V to 5.5V (3.0V typ)
* Low power supply consumption: 45mW (3.0V, 1.1GHz operation)
* Serial input 18-bit programmable divider consisting of:
* Binary 7-bit swallow counter (Divide ratio: 0 to 127)
* Binary 11-bit programmable counter (Divide ratio: 16 to 2047)
* Serial input 15-bit programmable reference divider consisting of:
* Binary 14-bit programmable reference counter (Divide ratio: 8 to 16383)
* 1-bit switch counter (SW) Sets divide ratio of prescaler
* 2types of phase detector output
* On-chip charge pump (Bipolar type)
* Output for external charge pump
* Wide operating temperature: TA= 40 C to +85 C
