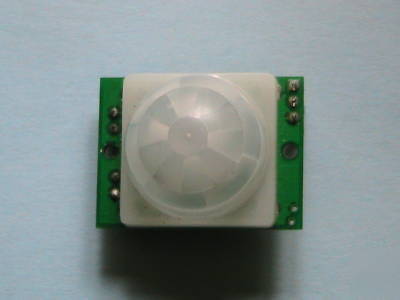

Parallax pir motion sensor

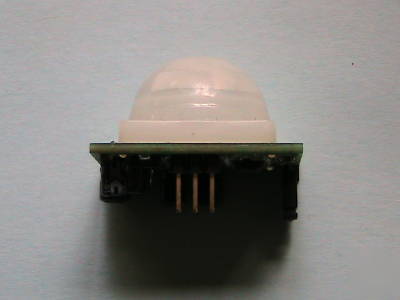

The PIR Sensor detects motion up to 20 feet away by using a Fresnel lens and infrared-sensitive element to detect changing patterns of passive infrared emitted by objects in its vicinity. PIR Sensor detects motion up to 20 feet away by using a Fresnel lens and infrared-sensitive element to detect changing patterns of passive infrared emitted by objects in its vicinity.Compatible with most all microcontrollers and integrates easily VIA 3 pin header power ground and signal.
* Power requirements: 3.3 to 5 VDC
* Communication: single bit high/low output
* Dimensions: 1.27 x 0.96 x 1.0 in (32.2 x 24.3 x 25.4 mm)
* Operating temp range: +32 to +121 F (0 to +50 C)
