Hp agilent 1132A oscilloscope probe 5GHZ infiniimax

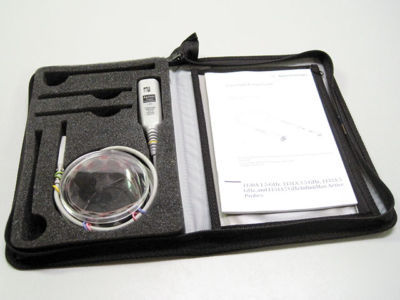

HP AGILENT 1132A OSCILLOSCOPE PROBE 5GHZ INFINIIMAX
The InfiniiMax 5 GHz 1132A probe amplifier (in conjunction with the E2669A differential or E2668A single-ended connectivity kits), was designed to be used with the Infiniium 4 GHz 90404A oscilloscope. This combination provides a full system bandwidth of 4 GHz to the probe tip. InfiniiMax maximizes measurement performance for both hands-on (e.g., browsing) or hands-off measurements, such as solder-in, socketed or SMA connections.
Compatible with 80404B or higher, 9404A or higher, and 90404A or higher bandwidth Series oscilloscopes.
* Differential Input R: 50 kOhm
* Differential Input C: 0.27-0.34 pF
* Single Ended Input R: 25 kOhm
* Single Ended Input C: 0.44-0.67 pF
