High heat shell & tube heat exchanger 1000 sqft FT2 tx
FT2 1000 Type AES Manufacturer HEAT TRANSFER EQUIPMENT CO. Tube Mat 304 SS Tube PSIG 75 Tube Deg 650 Tube Pass 4 Shell Mat 304 SS Shell PSIG 75 Shell Deg 850 Shell Pass 1 Model Serial Stamped NB 250 Built 1990

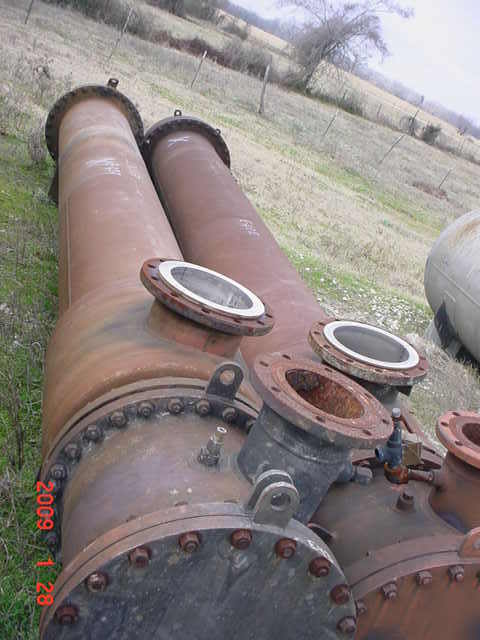

Description 1000 Sq.Ft. Used shell and tube heat exchanger. (324) Stainless Steel tubes @ 3/4" x 16'L. Shell is 22" dia. This is the heat exchanger that is on the left side of the picture.
