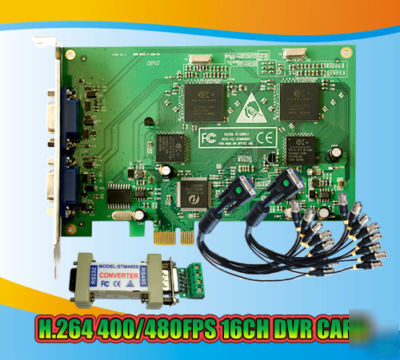

Cctv h.264 16CH 400/480FPS dvr pci-e card & RS232/RS485
Remote viewing /recording (backup) / playback / PTZ control by IE
* High speed network transmission
* Superior image clarity, built with 14-bit ADCs
* Easy to installation and use GUI (Graphical User Interface)
* 1) Camera input: 16 channels
* 2) Image quality: 14-bits ADCs super high quality
* 3) Image compression: H.264 optimized (high recording definition, especially when there is intense movement)
* 4) Video total frame rate: 400 fps in PAL, 480 fps in NTSC
* 5) Display resolution: 704 X 576, 352 X 288
* 6) Recording resolution: 704 X 576, 352 X 288
* 7) Compression ratio: 8-150M/H/C
* 8) Network protocol: TCP/ UDP
* 9) Operating System: Windows XP / VISTA 32
* 16 channel real time monitoring
* Each channel Image color can be adjusted independently by software
* Support mix inserting with ETHER9404 & ETHER9808ÐER9404A
* Multi screen monitoring, 1,4,9,16,25, 36 split Screen available, support rotate display
* Support multi-hard disks cycle recording
* Recording both flow trends yard and fix yard are available
* Intelligent searching for historical DVR files, 4 ch/ 9 ch/ 16 Ch/32ch playback
* Multi-user's authority management setup, support to set up user's operating authority
* Support motion detection trigger video recording, sending E-mail (monitoring pictures in the enclosure), sending alarm by sound.
* Setting up motion detection area discretionarily, the sensitivity is adjustable
* Through IE realize such perfect network management functions as remote spot monitoring, remote historical playback, remote spot video recording, remote historical video recording, etc
* Support Intranet IP to remote monitoring
* Support one IE remote monitors several DVR of different IP
1 Intel cpu recommended, AMD not recommended.
2 Mother board recommend: ASUS,GIGABYTE and the other famous brand.
3 Please choose intel chipset motherboard, please not choose motherboard with VIA,SIS,ATI, nVIDIA chipsets built in to avoid of incompatible problems.
4 Recommend to use dual DDR, will occupy 5% less CPU resources.
5 Power: 350W or upper to ensure stable power supply. Unstable or insufficent will may cause black screen of some CHS.
1) Windows XP Professional SP2 ,not support sever version, not support WIN9x please choose NTFS file format for Hardisk.
2) Please install Directx9.0c or upper.
3) Please install the latest display card driver.
4) It is better to not run the other applications when DVR system is running. Please do not install firewall and anti-virus software at the DVR host which may lead to the failure of remote connection or instability of DVR running.
Note: Please install the motherboard driver before install display card driver, otherwise maybe will Influlence the normal running of display card and DVR.
* Products are brand new in ORIGINAL box.
* Package includes: 1 16CH DVR card and 1 RS232/RS485 converter.
